| Place of Origin |
Jiangsu China (Mainland) |
| Brand Name |
YALAI |
| Model Number |
YL50C YL80C-1 YL80C YL100C |
| Theory |
Centrifugal Pump |
| Structure |
Piston Pump |
| Usage |
Water |
| Power |
Electric |
| Standard or Nonstandard |
Standard |
| Fuel |
Diesel |
| Pressure |
Low Pressure |

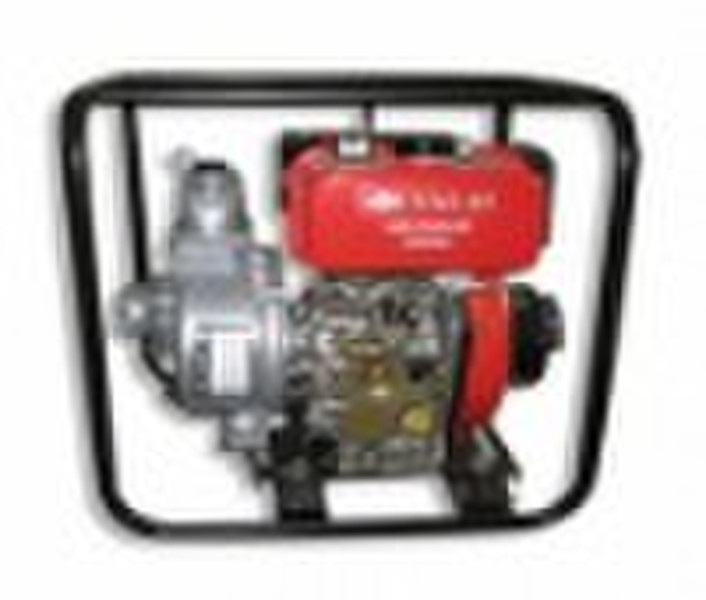

diesel water pump Features: 1.New-pattern, air-cooled, 4-stroke diesel engine powered;2.High strength die-cast aluminium alloy pump body; 3.Compact structure, light weight for easy transportation; 4.Security operation and easy maintenance.Specifications: ModelYL50CYL80C-1YL80CYL100CDiameters of Inlet and Outlet (mm)50(2")80(3")80(3")100(4")Max Flow (M3/h)36455096Rated Flow (M3/h)22303664Max Lift Head (m)26182531Rated Lift Head (m)15101316Rotation Speed (rpm)3000Self-Priming Time (s/4m)70120120180Max Suction Lift (m)8EngineYL170FPYL170FPYL178FPYL186FPRated Power (hp)3.83.85.57.7Displacement (cc)211211296406Oil Tank Capacity (L)2.52.53.55.5Net Weight (kg)38384567Overall Dimension (mm)560x470x565560x470x565560x470x565635x510x570Remark:1. YALAI can maufacture the goods by your special demand 2. The color of goods looks can be choosed by the customers
